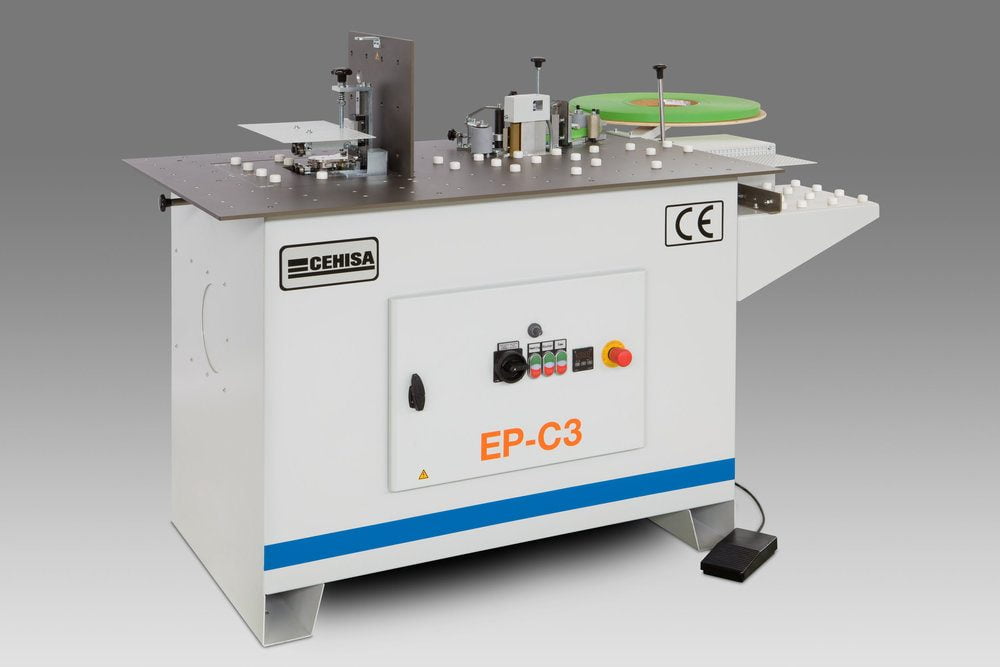

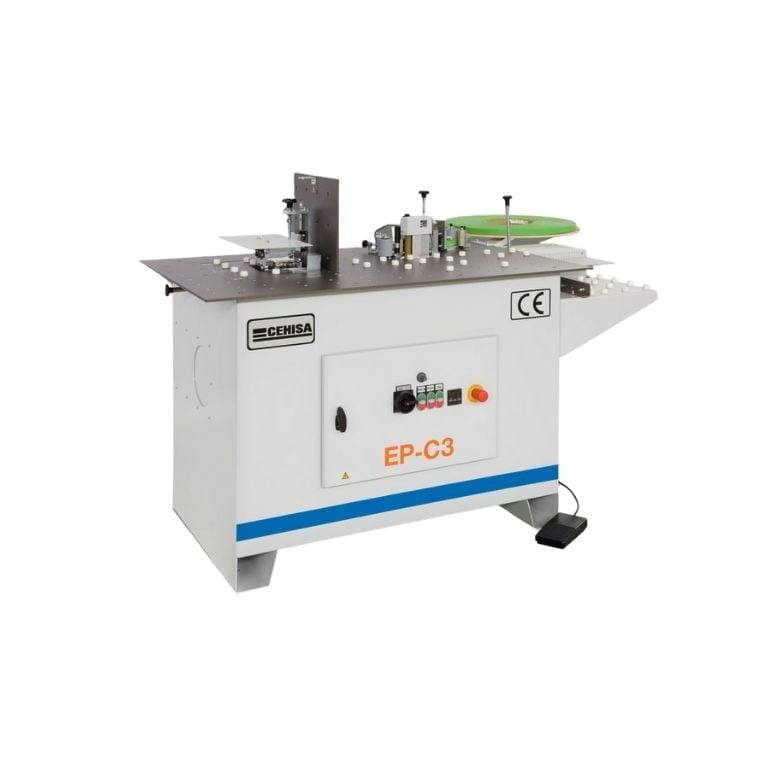

Cehisa EP-C3

With a 600mm diameter roll tray, automatic edge feed and foot pedal-controlled pneumatic guillotine, the Cehisa EP-C3 will make clean, effective work when trimming off the waste materials which hold your finished product back. This edge trimmer is compactly designed and will make a great fit in workshops of all sizes.

The powered feed roller has a range of speeds controlled by a foot pedal, allowing the operator far more control and precision via freeing up both hands hence providing a general boost to the efficiency and productivity of the machine and the operator.

For a greater degree of flexibility and to accommodate for all types of workpieces, precise control of the temperature is granted thanks to the electronic thermostat.

Made from solid aluminium, the table itself is highly durable and will sustain many years of usage. The size of the table makes it a fantastic fit for small workshops as well as mid-sized and larger ones.



Check out some of our other SCM edgebanders:



Description

With a 600mm diameter roll tray, automatic edge feed and foot pedal-controlled pneumatic guillotine, the Cehisa EP-C3 will make clean, effective work when trimming off the waste materials which hold your finished product back. This edge trimmer is compactly designed and will make a great fit in workshops of all sizes.

The powered feed roller has a range of speeds controlled by a foot pedal, allowing the operator far more control and precision via freeing up both hands hence providing a general boost to the efficiency and productivity of the machine and the operator.

For a greater degree of flexibility and to accommodate for all types of workpieces, precise control of the temperature is granted thanks to the electronic thermostat.

Made from solid aluminium, the table itself is highly durable and will sustain many years of usage. The size of the table makes it a fantastic fit for small workshops as well as mid-sized and larger ones.



Check out some of our other SCM edgebanders:



Specifications

Workpiece thickness8 – 50 mm
Edging thickness0.4 – 3 mm
MotorNA
Air pressure requirement6 – 7 bar
Power1 phase
Overall dimensions1650 x 785 x 1180 mm
Weight200 kg

Solid aluminium table
Roll tray dia 600mm

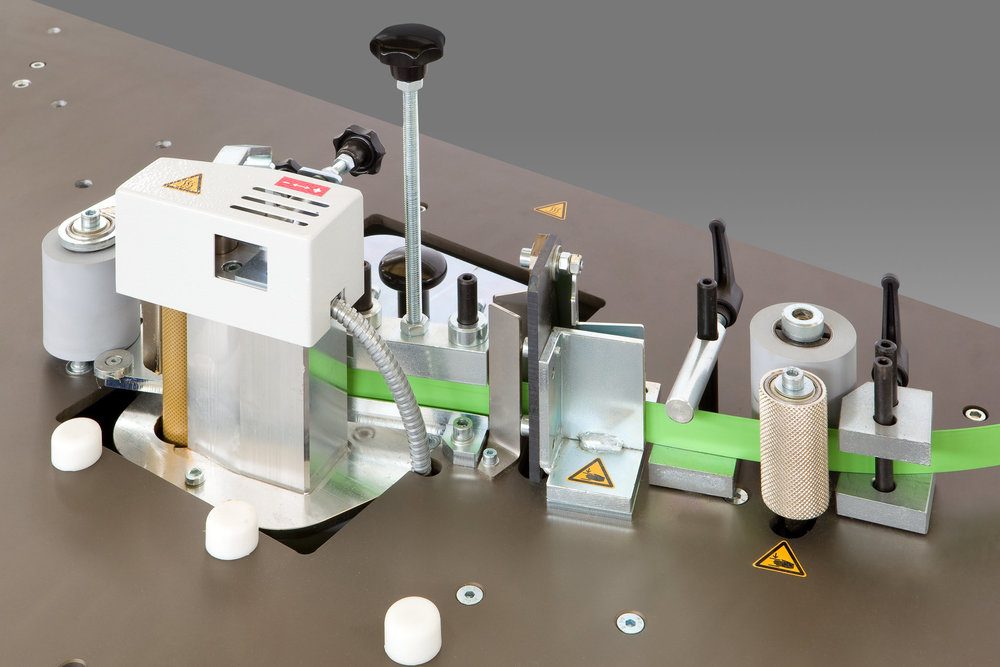

Automatic edge feed
One roller glue unit applying the glue to the edge strip
Precise temperature control by electronic thermostat
HF inverter controlled drive of edge feed and pressure roller with step-less speed adjustment
Pneumatic guillotine with max cut off capacity 3mm x 30mm, foot pedal control

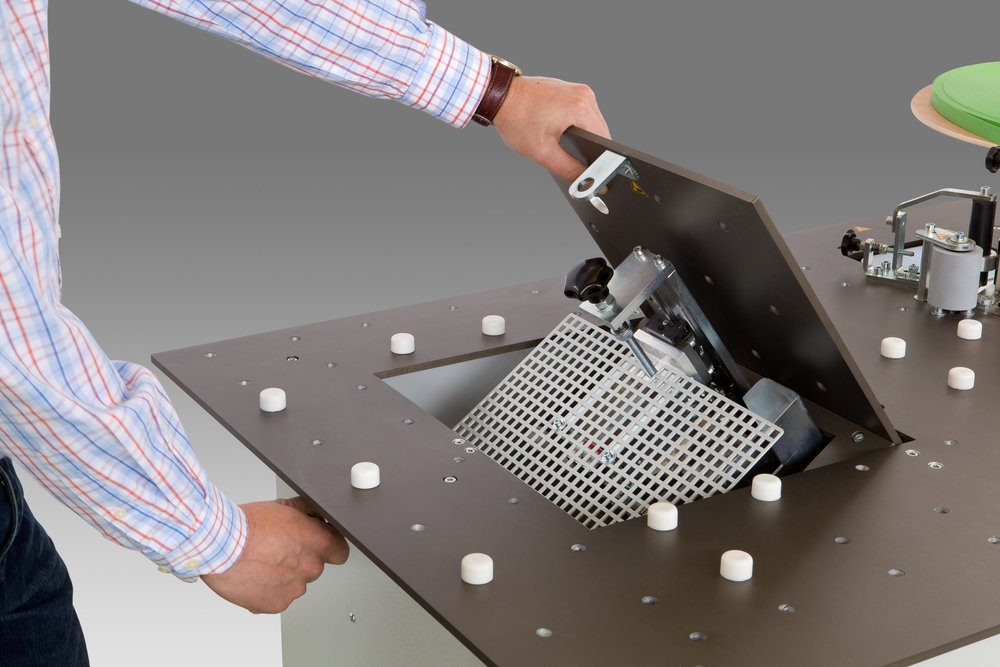

Edge trim unit with pivoting base, powered by HF motor 0.35kw (inverter controlled) equipped with cutterhead z4 r2

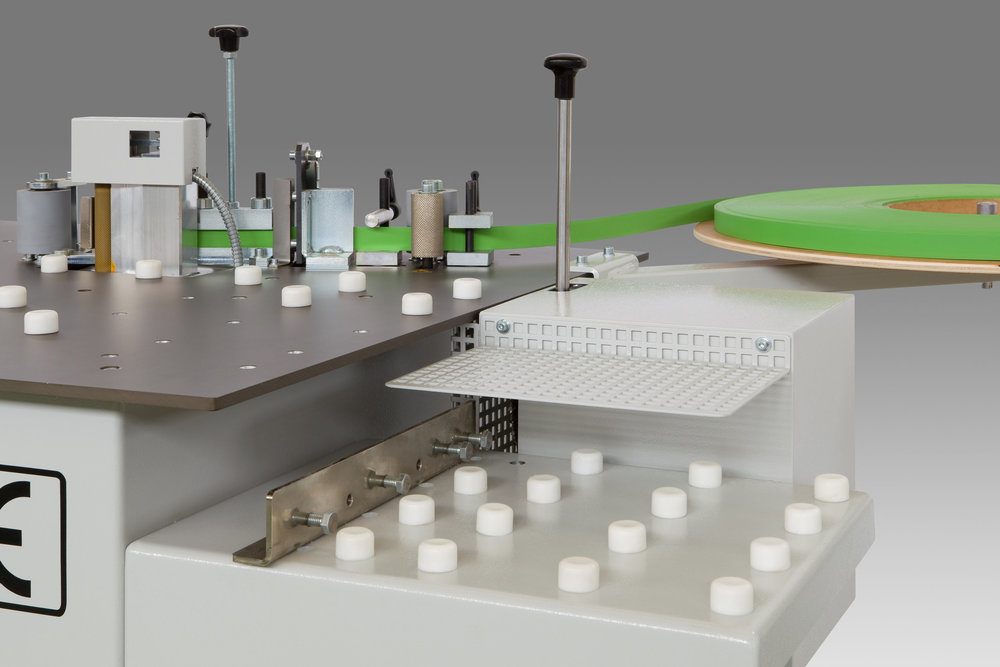

Semi-automatic end trim unit with 0.35kw (inverter controlled) equipped with 120mm saw blade
