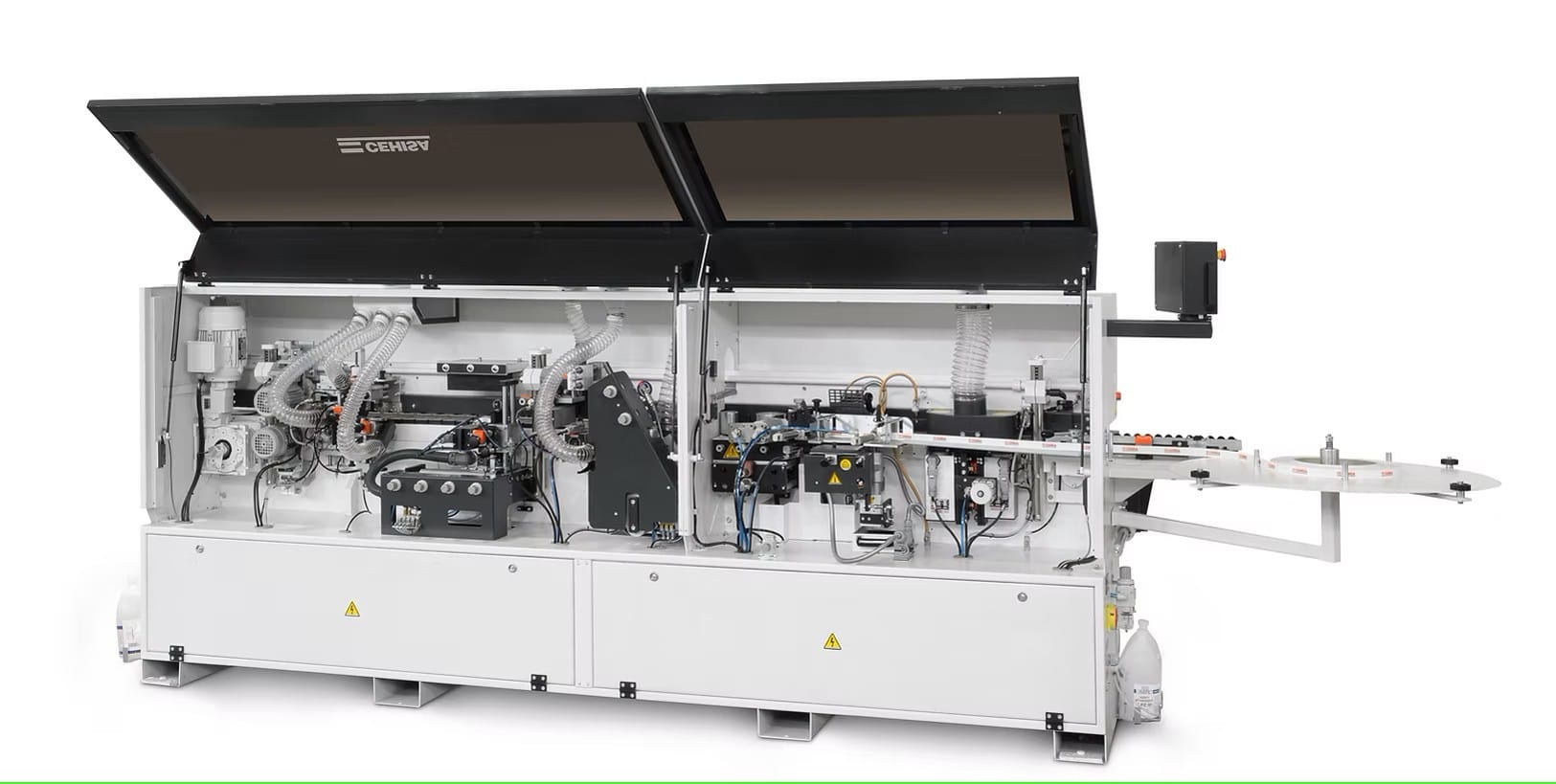

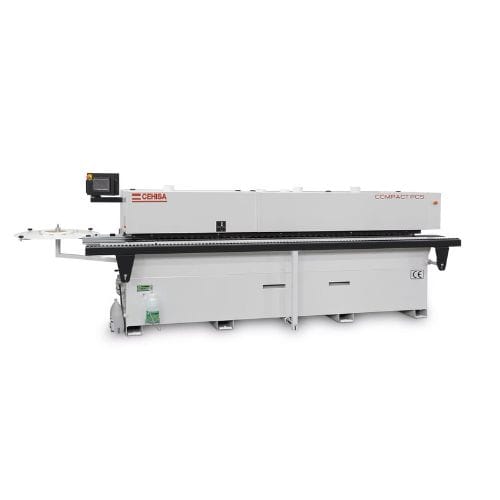

The CEHISA COMPACT Series is a compact, high-performance edgebander designed for modern carpentry workshops. It offers industrial-level features in a space-efficient design, making it ideal for shops looking for quality and versatility.
Key Features:
Suitable for panels from 8 to 60 mm thick (particle board, MDF, plywood).
Supports edging materials like PVC, ABS, melamine, acrylic, and wood (0.4 to 3 mm in rolls, up to 5 mm in strips).
Compatible with EVA, PUR, and PO adhesives.
Includes CEHISA’s AirFlow System for better glue application.
High-frequency motors with electronic control and TFT touch screen interface.
Optional Add-ons:
Return conveyor for better workflow.
Remote support and diagnostics.
Barcode reader for job tracking.
Duo-Melt system for adhesive flexibility.
Technical Specifications
Panels: Particle board, plywood, MDF… from 8 to 60mm thickness.
Edges: Melamine, PVC, ABS, PP, wood, formica, acrylic… 0,4 to 3mm in rolls and up to 5mm in solidwood.
Adhesives: EVA/PUR/PO and AirFlow System.
Equipment: HF motors controlled by independent electronic converters, encoder controlled working groups and PLC controlled by TFT touch screen.
