Description

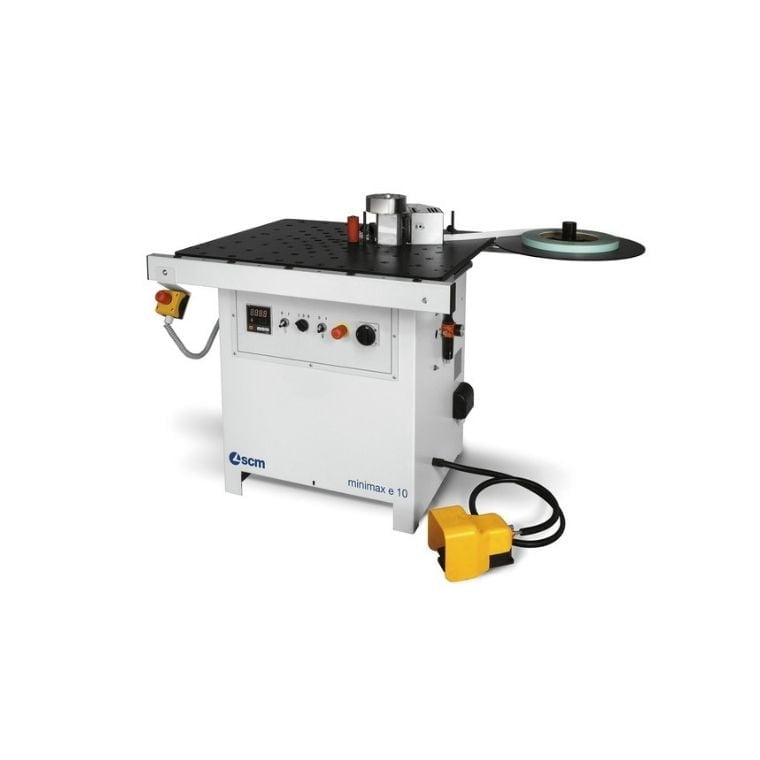

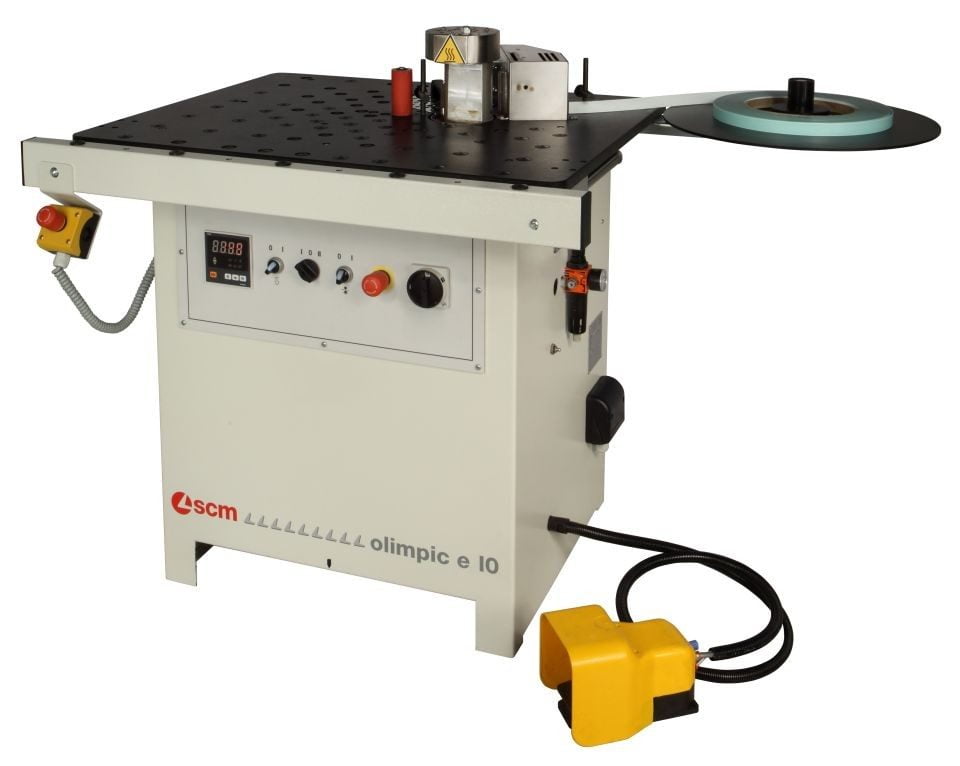

This economically designed edge bander is both practical and reliable – showcasing the high standard of functionality, ergonomics and durability which SCM offer.

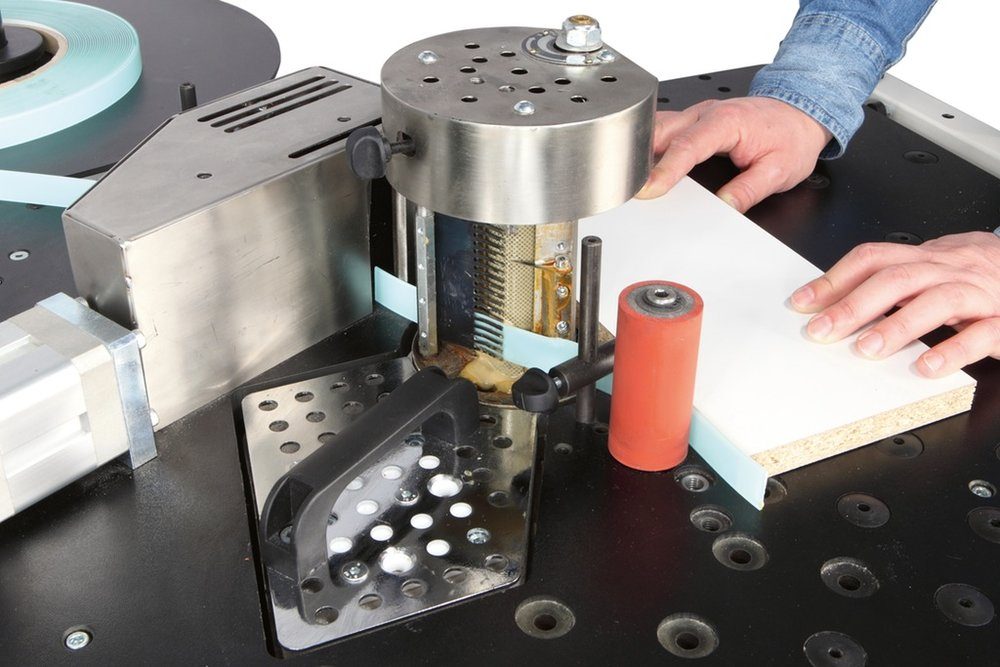

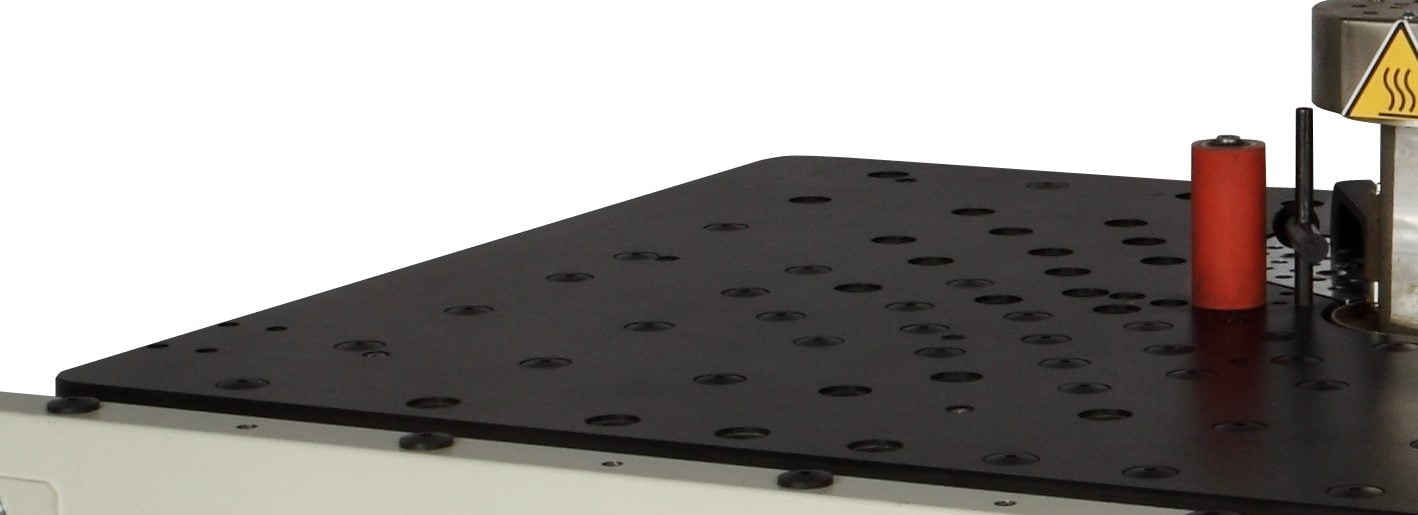

With a Teflon-coated glue pot positioned under the worktable and continuous glue circulation, the burning of any glue is wholly avoided. The worktable has a special anti-scratch phenolic multilayer which means no damage will be inflicted during the machining process.
Optional features include:

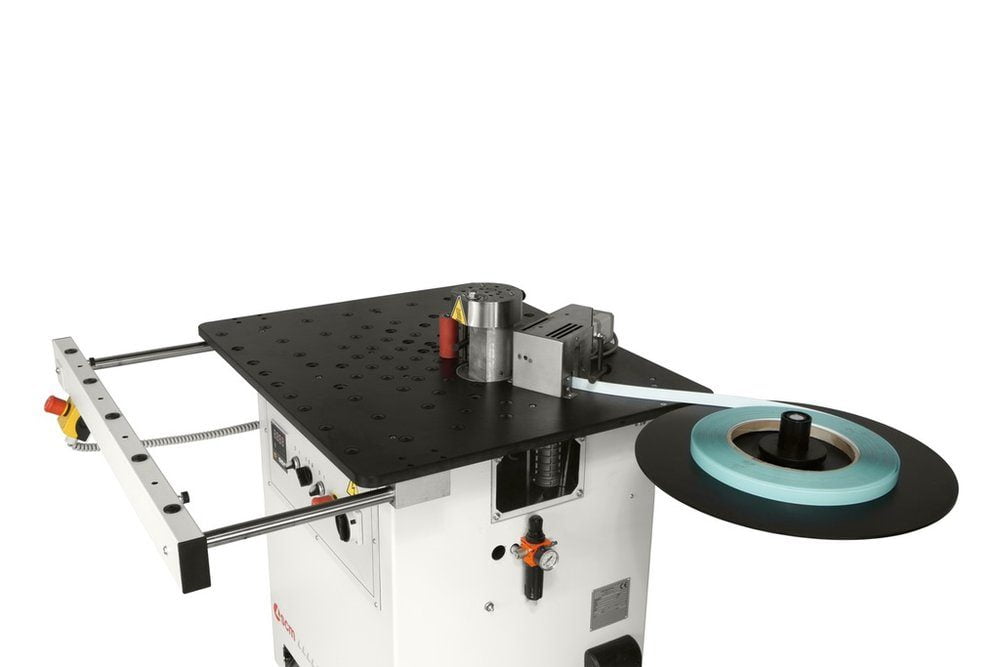

- 780mm coil holder

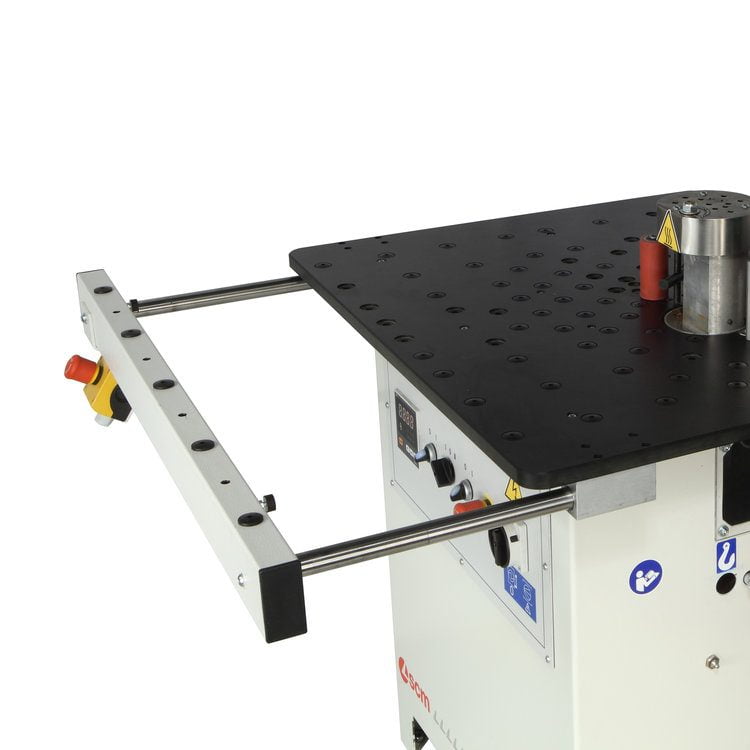

- Front extension pullout

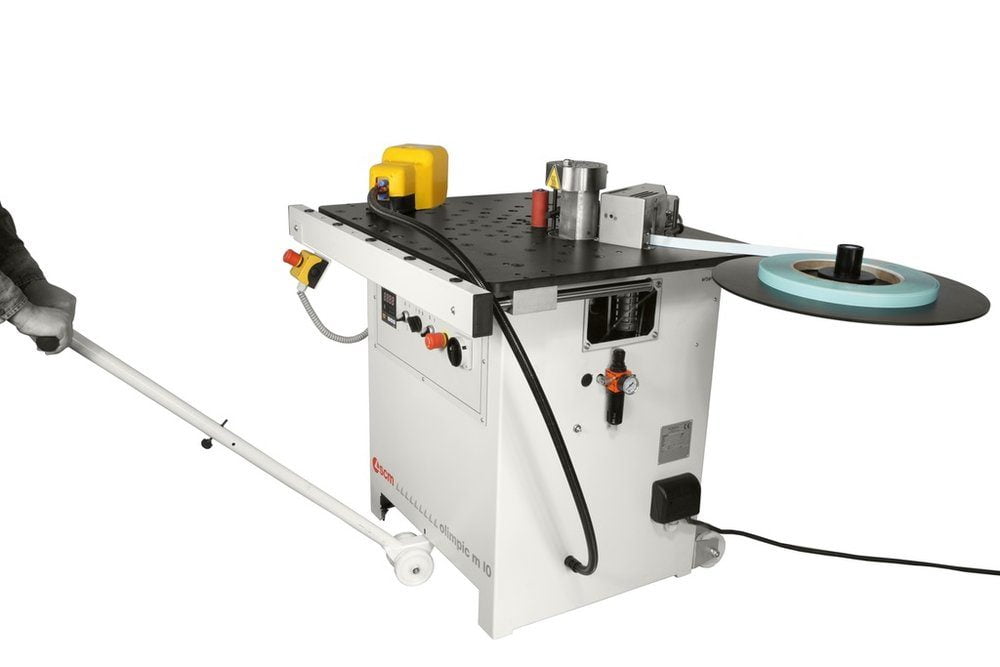

- Wheel kit
- Single-phase
Check out some of our other SCM edgebanders:
Specifications
Edge thickness mm 10 ÷ 83
Panel thickness mm 8 ÷ 80
Minimum panel width mm 50
Minimum panel length mm 210
Minimum internal radius mm 25
N.2 feed speed m/min 4 – 8
Motor power kW3.5
| Thickness of pre-cut edges in strips | 0,4 – 3mm |
Thickness of edges with shear device:
(80 mm height)
(50 mm height)
(45 mm height) | 0,4 – 1,5mm
0,4 – 2,5mm
0,4 – 3mm |
| Edges thickness | 10 – 84mm |
| Panels thickness | 8 – 80mm |
| Minimum panel width | 50mm |
| Minimum panel length | 210mm |
| 2 feed speeds | 4 – 8m/min |
| Maximum operating temperature | 140 -220°C |
| Motor Power | 3,5kW |
| Overall dimensions | 1000x740x1100(H)mm |
| Coil holder plate diameter | 520mm |
| e 10 | | |
| Min. – max. Edge banding thickness | mm | 0.4 – 3 |
| Min. and max. edgebanding height | mm | 12 – 84 |
| Min. – max. panel height | mm | 8 – 80 |
| Minimum panel width | mm | 210/50 |
| Minimum internal radius (concave), 0.4 mm thickness | mm | 25 |
| Minimum external radius (convex), 0.4 mm thickness | mm | 5 |
| 2 feed speeds | m/min | 4 – 8 |
| Single-phase motor | Hp | 4 |
